Digital Multimeter Basic

  • 63.90 EUR
  • excl. tax

In stock.
Dela
Article Number: 100882

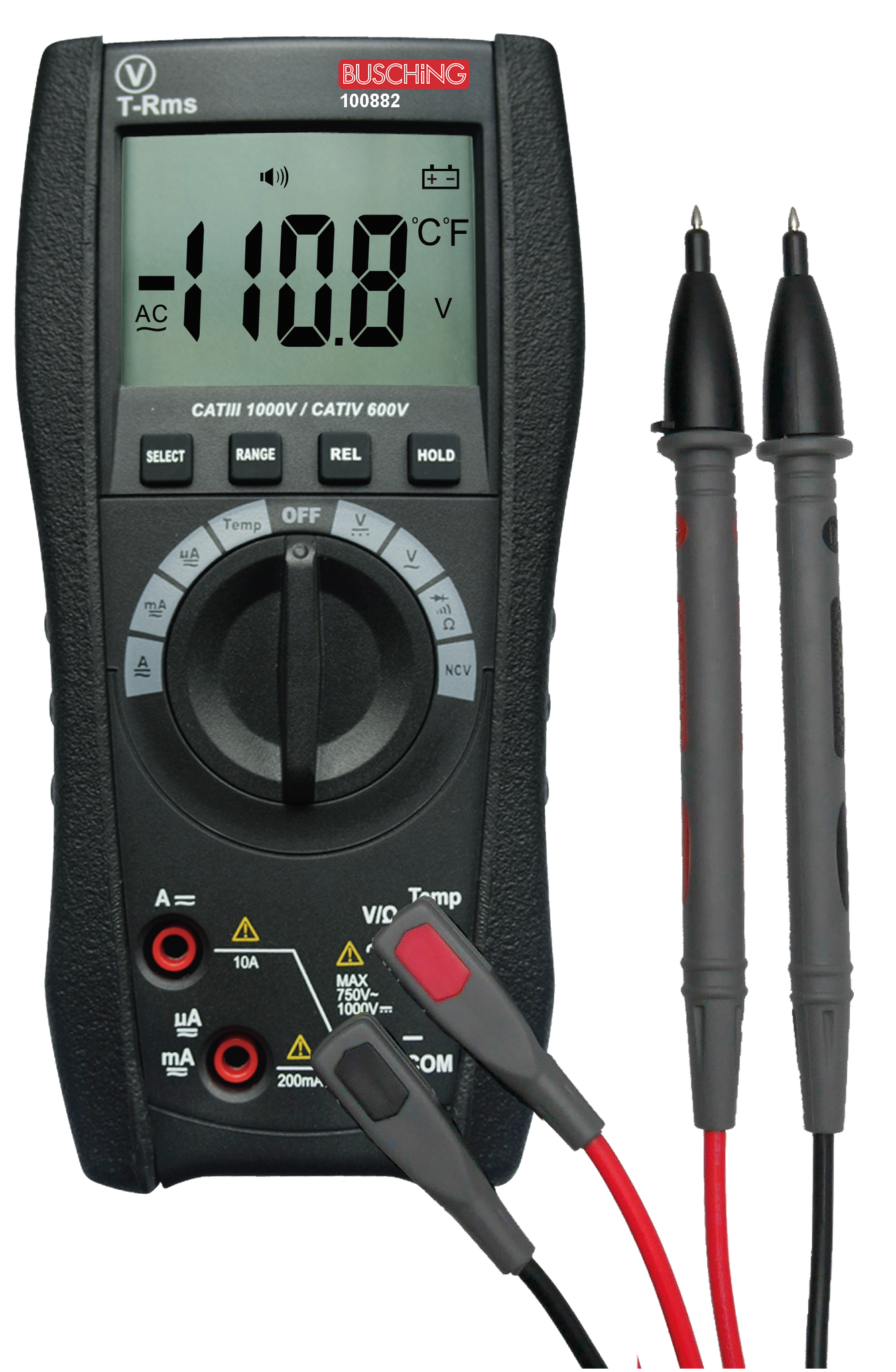

Digital Multimeter Basic

The digital multimeter is distinguished by an automatic range selection and extensive measuring functions. Due to the high safety standard of the overvoltage category CAT III 1,000 V, CAT IV 600 V and the large digital display with background lighting, this high-quality device is particularly suitable for training and service areas. With the digital multimeter, the real RMS values are displayed for both sinusoidal and distorted signals. The digital multimeter Basic can take a temperature measurement with special accessories that are not included in the scope of delivery.


Technical Data

  • DC / AC voltage measurement

  • DC / AC current measurement

  • Resistance measurement

  • Diode / continuity measurement

  • True effective value measurement (TRMS)

  • Relative value measurement

  • Contactless voltage test with acoustic and LED alarm

  • Temperature measurement possible with special accessories

  • Measuring range:

    AC: 0 AC: 0 - 750 V / 0 - 10 A

    DC: 0 - 1,000 V / 0 - 10 A

    Ω: 0 - 60 MΩ

  • Temperature: -200 – 1,300 ° C

  • Display: LCD with backlight

  • Resolution: 2,000, 3 ½ digits

  • Measurement sequence: 3 times per second

  • Low battery indicator

  • Measurement hold function

  • Automatic shutdown

  • Power supply: battery 9 V block

  • Overvoltage category: CAT IV 600 V, CAT III 1,000 V

  • Safety standard: EMC: EN 61326-1, EN 61326-2-2; GS: EN 61010-031, EN 61010-2-030, EN 61010-033

  • Weight: 0.614 kg

  • Dimensions: 250 x 110 x 65 mm

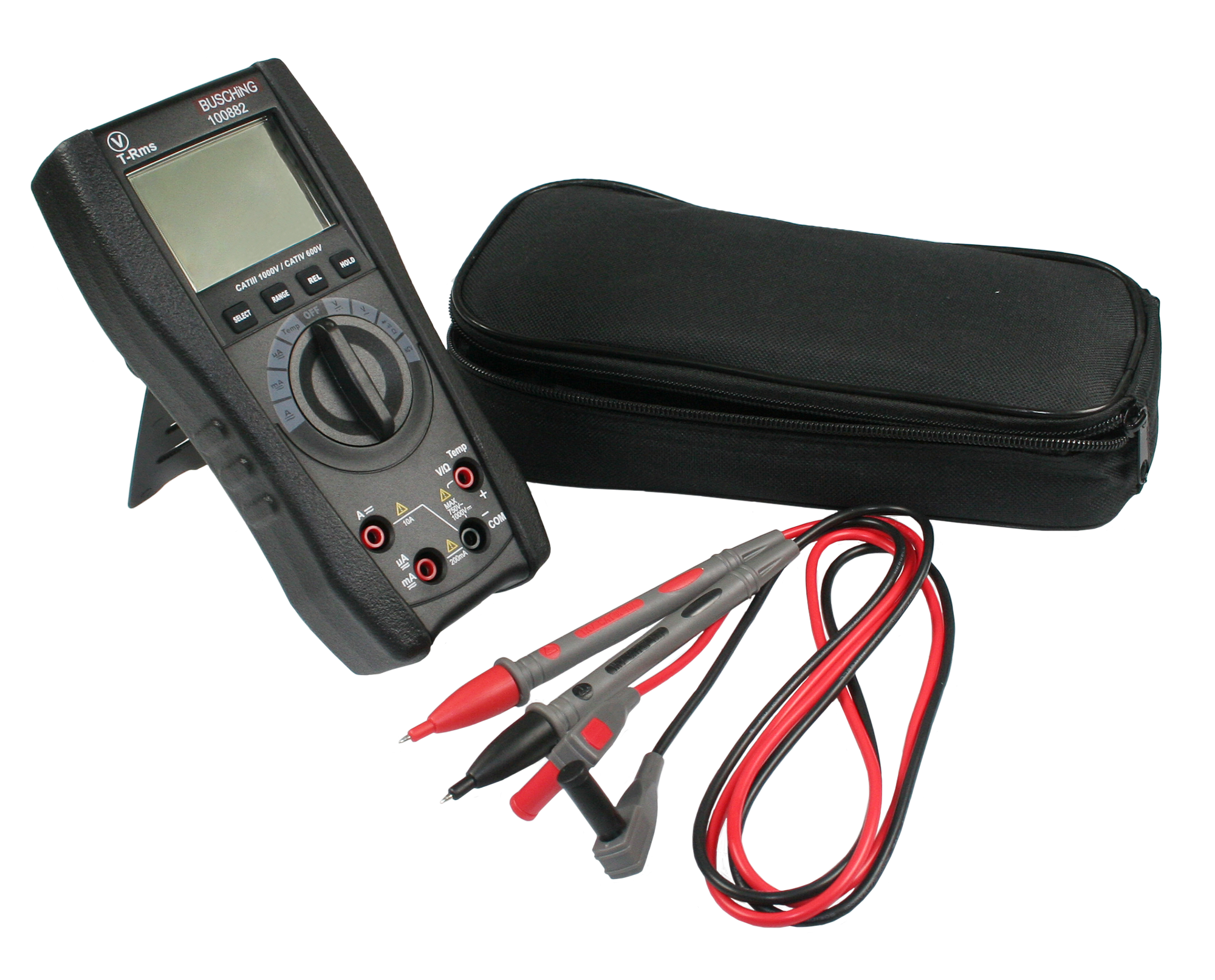

Scope of delivery

  • 1 x Digital multimeter

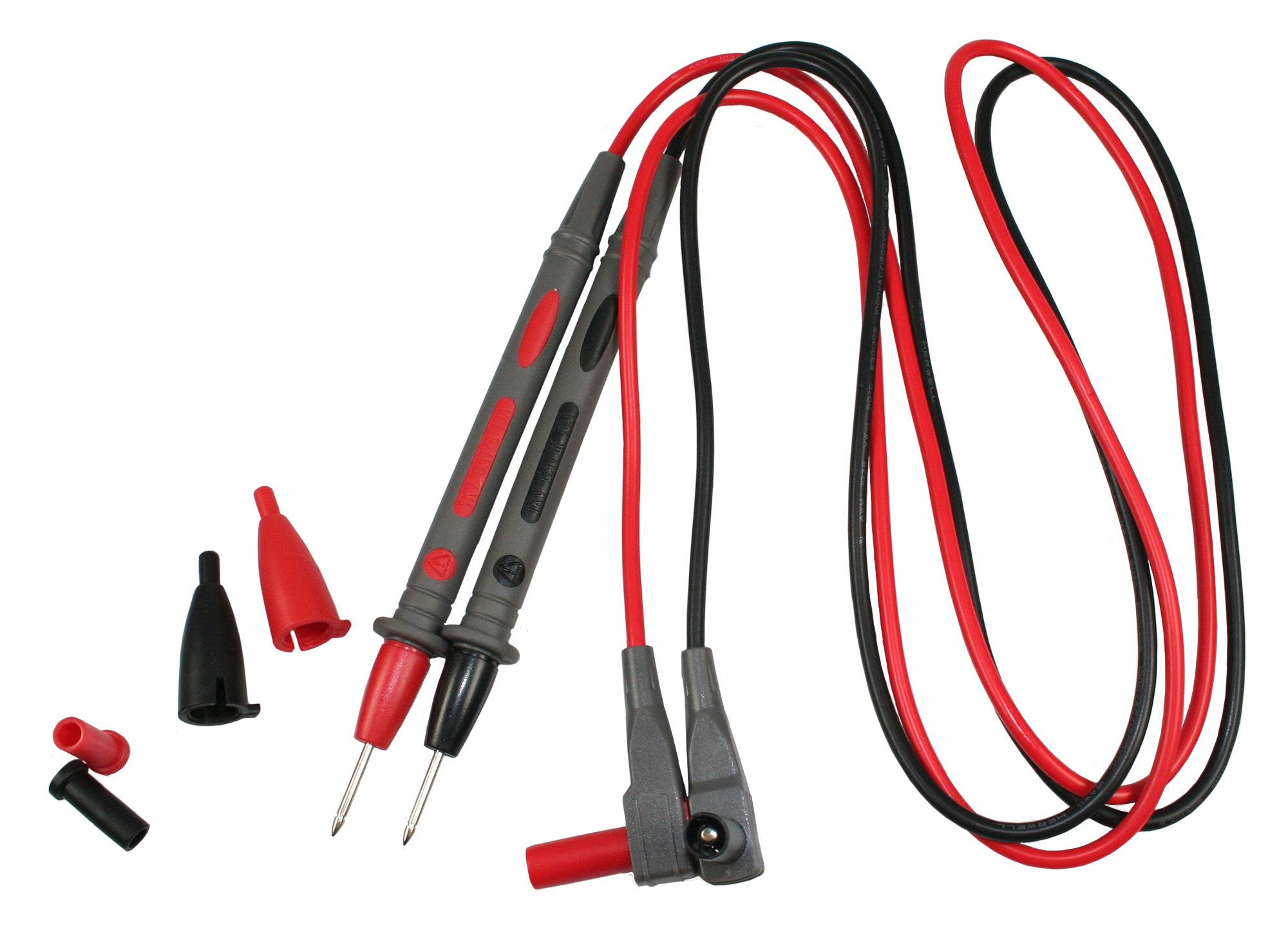

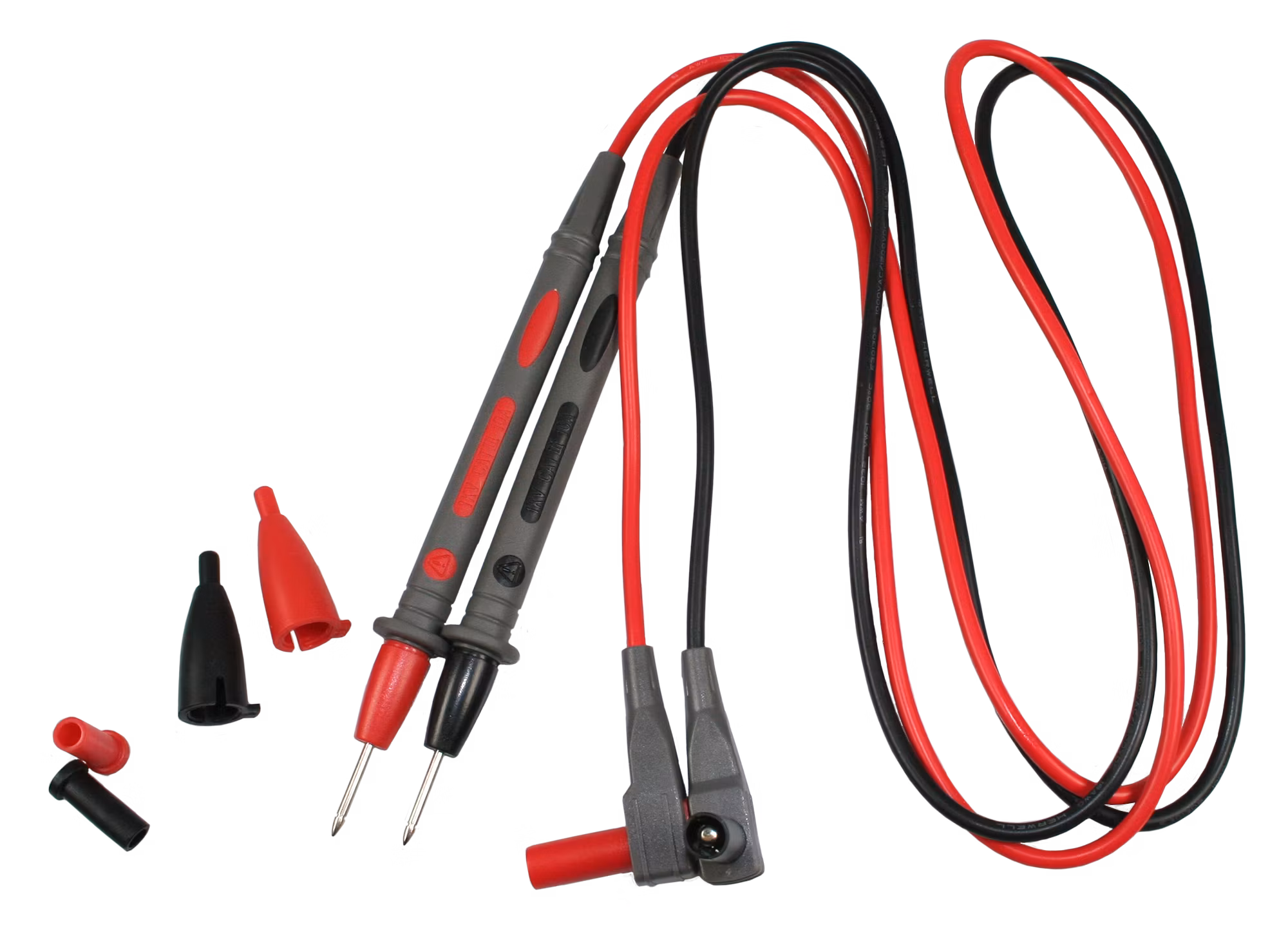

  • 1 x Measuring cable set Test cable with angled plug and test probes (red / black)

  • 1 x Battery 9 V block

  • 1 x Instruction manual

  • 1 x Storage bag

Weight

0.614 kg

Size

250 x 110 x 65 mm
