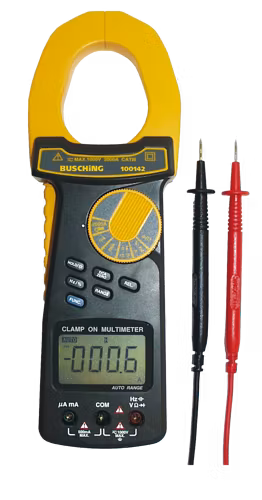

This robust device supports the measurement options: DC and AC current up to 2000 A, data hold function, relative measurement, resistance and frequency measurement, continuity test, diode test and capacitance test, closing angle % and A DC zero setting.

Technical data:

• A DC / A AC (direct): 0 - 240 mA
• A DC / A AC (clamp): 0 - 600 mA, 0 - 2000 A
• V DC: 0 - 240 mV, 0 - 1000 V
• VAC: 0 - 1000 V
• Resistance: 0 - 240 KΩ, 240 KΩ - 2.4 MΩ, 2.4 - 24 MΩ
• Frequency: 0 - 100 kHz
• Closing angle: 1 % - 99
