Multi logic tester "Scope+"

  • 201.60 EUR
  • excl. tax

In stock.
Dela
Article Number: 100911

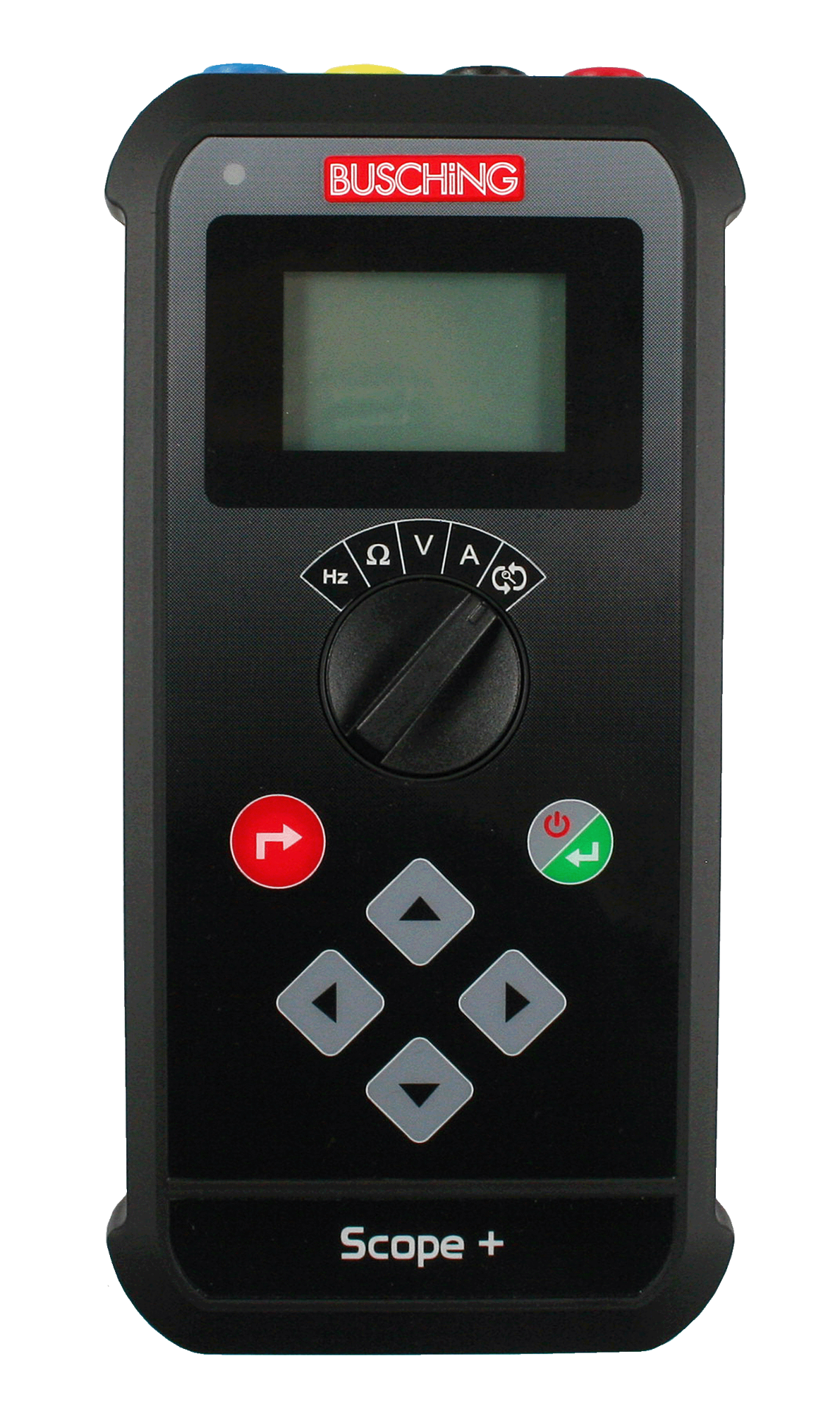

The "Scope+" combines the functions of a multimeter and multitester in one device. The tester is used for quick diagnosis of the vehicle electrical system. Measurement results are displayed both graphically and acoustically.

Technical Data:

  • Automatic measuring range selection "Auto Range": 6/12/24 V
  • Starter test: 12/24 V
  • Alternator test: 12/24 V
  • Measuring range direct voltage: 0 – 50 V DC +-2%
  • Measuring range direct current / parallel connection:
    0 – 80A +-3%
    3 – 30 A (mini fuse)
    3 – 40A (ATC fuse)
    20 – 80 A (Maxi fuse)
  • Measuring range direct current / series connection:
    1 – 999 mA +-1% (adapter)
    1 – 30 A +-2% (adapter)
  • Measuring range resistance: 0 – 1 MΩ +-2%
  • Measuring range frequency/ cycle rate/ percent
  • Continuity tester: buzzer/LED
  • Display: Graphic LCD backlight
  • Power supply: 3 x AA
  • Dimensions: 270 x 200 x 75 mm
  • Weight: 0.95 kg

Scope of Delivery:

  • 1 x Multi Logic Check Tester
  • 2 x Silicone Test Lead 4 mm
  • 2 x safety test probes, pluggable, 4 mm
  • 2 x Alligator Clip Insulated 4mm
  • 1 x Instruction Manual
  • 1 x Soft Case
