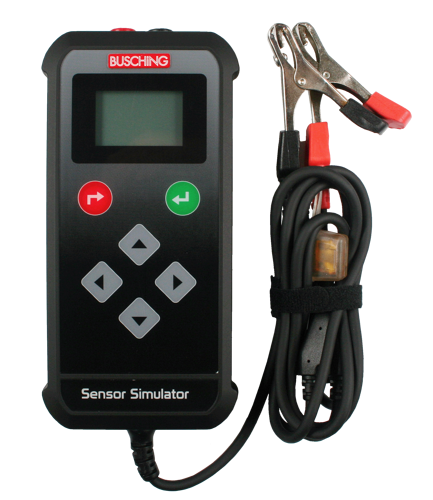

The ideal tester for simulating and controlling the output signals from vehicle sensors. It is equipped with a power of up to 4 A. The tester is mainly used for simulating the control systems in the field of sensor automotive error analysis and wiring analysis. Output signals for the most common automotive sensors can be simulated (ABS, O2, EGR, CkP, Knock, Map, etc.) and actuators can be activated. An input voltage supply of 9 V DC to 15 V DC or a 12 V DC vehicle battery is required.
Simulator and output functions for
Resistance
Tension
Sine wave
Square wave
Temperature
Throttle and pedal sensor sequences
Lambda probe
Oxygen sensor: test mode and simulation modes
Examples of sensors to be simulated
ABS
O2
EGR
CKP
Klopfsensor
Saugrohrdrucksensor
etc.
Technical Data
Size: 270 x 220 x 80 mm
Weight: 1.1 kg
Scope of Delivery:
1 x Sensor Simulator Tester
1 x Measuring line red 4 mm plug 1,200 mm
1 x Measuring line black 4 mm plug 1,200 mm
1 x Test probe red 4 mm socket
1 x Test probe black 4 mm socket
1 x Test lead with crocodile clip red 4 mm socket 180 mm
1 x Test lead with crocodile clip black 4 mm socket 180 mm
